Why ±0.5mm Manufacturing Tolerance in Modular Panels Cuts On-Site Installation Labor by 50%
When estimating a controlled environment or cleanroom project, the cost of the raw materials is only half the equation. The real wild card that can break a budget or cause a project to miss its deadline is on-site installation labor.
For cleanroom builders and construction managers, time spent field-modifying components on the job site is profit down the drain. If wall panels arrive even slightly warped, out of square, or outside of strict dimensional tolerances, your installation crew transforms from high-speed assemblers into a slow-moving, field-reengineering team.
As a direct modular wall panel manufacturer, we engineered our fabrication process to eliminate this exact bottleneck. By maintaining a strict ±0.5mm manufacturing tolerance, Moddulx panels eliminate the downstream compounding errors that plague low-tolerance alternatives, cutting on-site assembly hours by up to half.
The Downstream Nightmare of Cumulative Error (The Tolerances Gap)
In standard commercial drywall construction, a variance of a few millimeters is easily hidden by mud, tape, and trim. In modular controlled environments, a minor variance is a catastrophic defect.
How Layout Drift Delays Construction Schedules

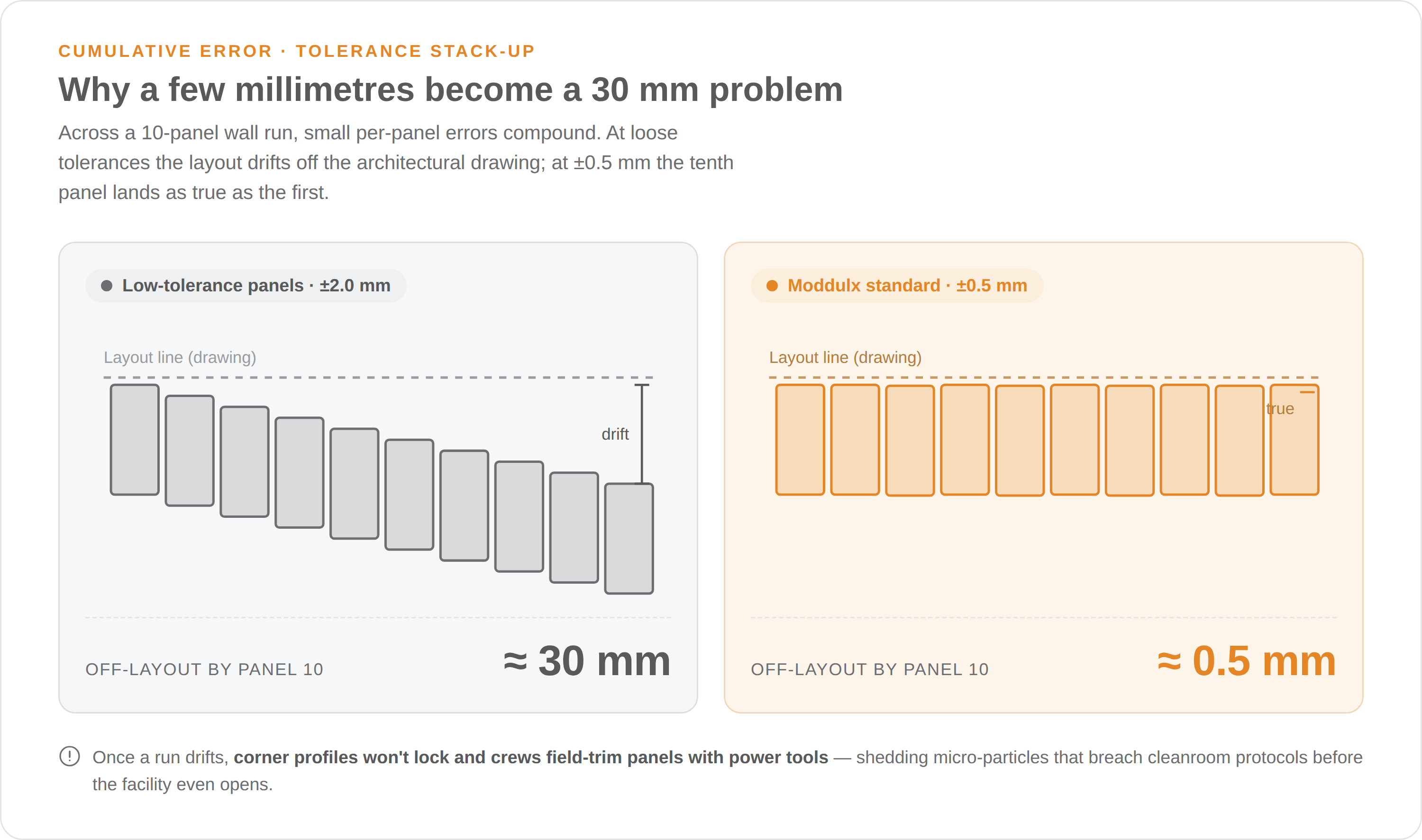

When panels are manufactured with lax tolerances (often up to ±2.0mm to ±3.0mm from lower-tier providers), a phenomenon known as cumulative error or "tolerance stack-up" occurs.
As shown above, by the time your crew installs the tenth panel in a continuous wall run, a loose tolerance layout can drift off the architectural drawing line by as much as 20mm to 30mm. This error ripples through the entire job site:
- Progressive wall runs drift completely off the layout lines.
- Pre-fabricated ceiling grids fail to align with the wall headers.
- Corner profiles refuse to lock seamlessly, forcing crews to stop and manually field-trim panels with power tools—creating micro-particles that violate cleanroom cleanliness protocols before the facility even opens.
By keeping our manufacturing threshold to a razor-thin ±0.5mm, the tenth panel aligns just as perfectly as the first, ensuring your layout remains true to the architectural drawings from end to end.
Precision Engineering vs. Field Modification
Every minute your crew spends measuring twice, cutting once, and grinding down rough edges on-site is a minute wasted. True modularity means components should lock together straight out of the crate.
How Perfect Joints Secure Airtightness and Compliance
A cleanroom or dry room is only as reliable as its pressure boundary. If your panels don't fit together perfectly, passing the mandatory ISO 14644-3 air leakage tests becomes an expensive game of hide-and-seek.
When joints are uneven due to poor manufacturing tolerances, internal gaskets cannot compress uniformly. This creates micro-gaps that leak conditioned air, forcing the facility's HVAC systems to work overtime and risking a failed certification.
Because Moddulx panels are manufactured with mechanical precision, the tongue-and-groove connection ensures uniform gasket compression along the entire vertical height of the panel. This guarantees a reliable, repeatable seal that comfortably satisfies the strict leakage classes required by pharmaceutical GMP standards and EV battery dry room specifications.
Smart Preparation: Pre-Engineered MEP Routing
True precision manufactured cleanroom panels don't just stop at square edges. At Moddulx, we integrate structural utility raceways right into the panel core during the fabrication phase.
When your mechanical, electrical, and plumbing (MEP) installers arrive on site, they aren’t fighting the wall system. They pull wires through pre-routed internal channels and mount fixtures into perfectly flush, factory-milled openings. This eliminates the coordinate-and-cut lag that frequently derails fast-track construction schedules.
Buy Direct: Eliminate the Distributor Markup and Delays
Maximizing modular panel installation efficiency isn't just about how the panels fit together—it's about when they arrive. Working through a middleman or international distributor introduces communication gaps where precise structural tolerances get lost in translation.

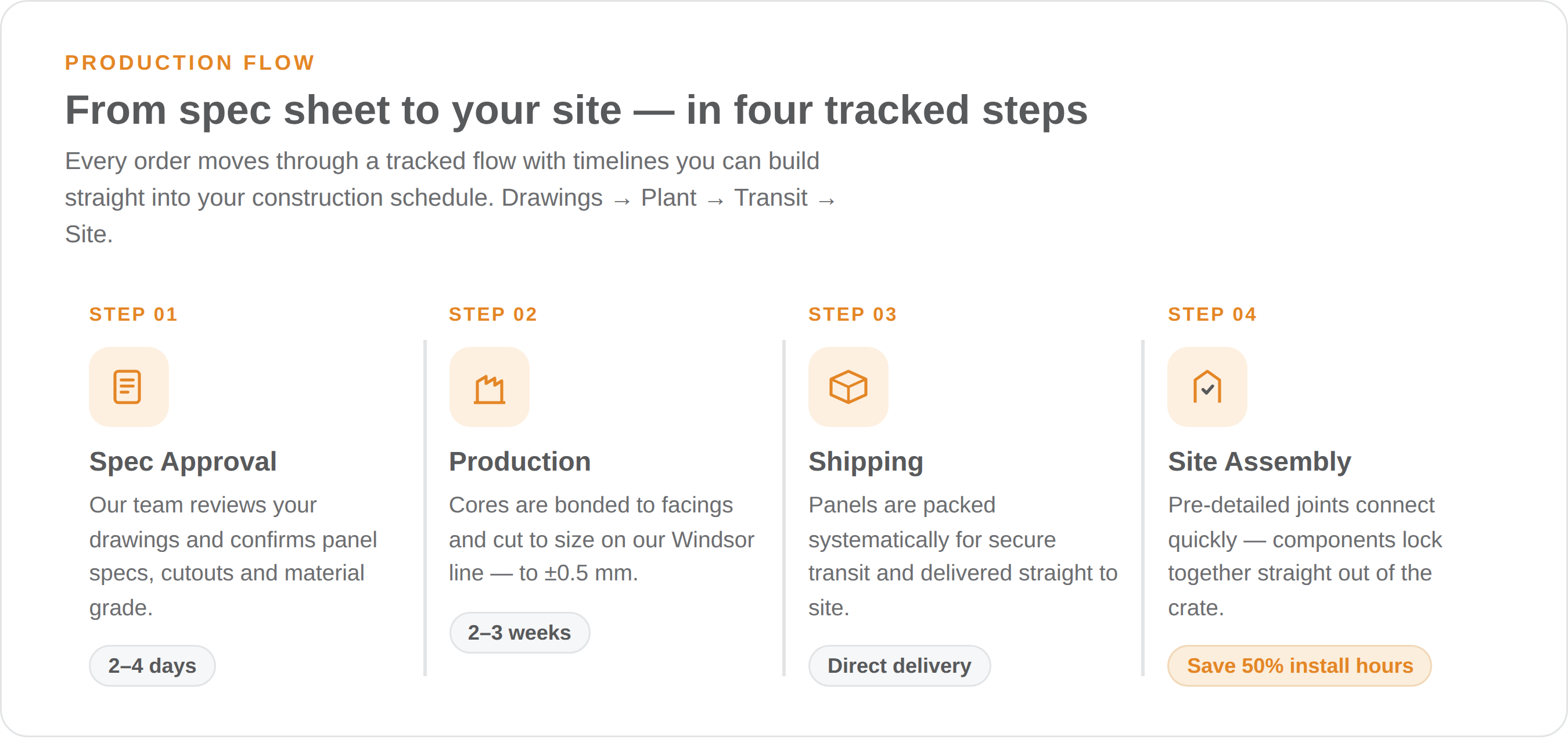

When you partner with Moddulx, you are buying direct from the North American factory floor. Our engineering team reviews your drawings, inputs the exact metrics into our automated production lines, and delivers certified panels to your job site on a predictable, tracked timeline to keep your construction schedules on target.
Need High-Precision Panels for Your Next Bid?
Don't let poor manufacturing tolerances balloon your on-site labor costs. Keep your next cleanroom, lab, or high-tech manufacturing project on schedule and under budget with panels engineered to fit the first time.
