Modular Cleanroom Panel Systems
Cleanroom sandwich panels, built to spec
Modular cleanroom wall & ceiling panels manufactured in-house from a chosen face and core: 7 surface finishes, 3 core types, in 50mm, 25mm and 10mm. ISO 14644 and GMP compliant, shipped across the US and Canada.
CompliantGMP
CertifiedDirect
Manufacturer200+
Projects supplied40 lb/ft²
Walkable ceiling load
Cleanroom Sandwich Panels
Modular cleanroom wall & ceiling panels, built to spec
Every Moddulx panel combines two components: a face (the surface finish) and a core (the construction), manufactured in your chosen size. Choose from 7 surface finishes and 3 core types (aluminium honeycomb, EPS insulated, Rockwool fire-rated), available as sandwich panels in 50mm and 25mm, or a 10mm liner/cladding panel. Direct manufacturer, ISO 14644 and GMP compliant, shipped across the US and Canada.
01 · Component
Build your panel: sheet & core
Every Moddulx sandwich panel is built from two layers. See each one below, then choose the options that match your environment.
& structural core
to specify
EPS, Rockwool

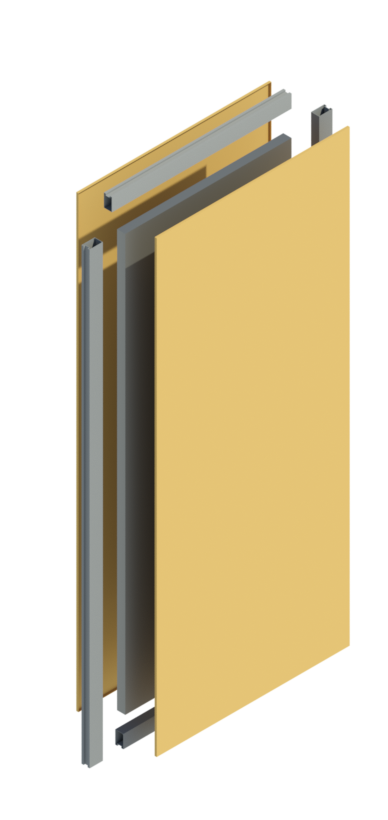

Sheet
The outer skin you see, touch and clean. A 24-gauge uPVC-coated galvanized steel sheet that gives the panel its smooth, sealed, easy-sanitise surface.
Sheet at a glance
- Material
- uPVC-coated GI steel
- Gauge
- 24 g
- Finish options
- 7 surfaces
- Surface
- Smooth, non-porous
- Best for
- Cleanrooms, food & pharma
Choose a surface finish
On demand finishes are available on request. Longer lead times may apply.
Advantages
- Smooth, non-porous surface that is easy to clean and sanitise
- Excellent chemical and detergent resistance
- Anti-static surface properties
- Consistent white finish, ideal for cleanrooms
- Can be silicone sealed at joints for an airtight finish
- Most popular choice for pharmaceutical and food environments
Considerations
- Limited colour options, primarily available in white
- Slightly higher cost than pre-painted finish
Advantages
- Hard, durable finish that is impact and scratch resistant
- Wide range of RAL colours available
- Excellent corrosion resistance
- Easy to clean and maintain
- Good chemical resistance for standard environments
Considerations
- Not recommended for highly aggressive chemical environments
- Colour consistency may vary slightly between batches
Advantages
- Most cost-effective standard finish option
- Applied at coil stage for a consistent factory finish
- Available in standard colours
- Good corrosion resistance for general applications
- Suitable for industrial and controlled environments
Considerations
- Less chemical resistance than UPVC or powder coat
- Not recommended for aggressive cleaning protocols
- Surface more susceptible to scratching
Advantages
- Fibre-reinforced for high impact and flexural strength
- Excellent chemical and moisture resistance
- Lightweight compared to steel alternatives
- Suitable for aggressive washdown environments
Considerations
- Available on demand, longer lead times
- Higher cost than standard finishes
Advantages
- Smooth, easy-clean surface
- Good chemical and detergent resistance
- Safe for food contact applications
- Consistent finish and colour
Considerations
- Available on demand, longer lead times
- Higher cost than standard finishes
Advantages
- Very robust and strong
- Corrosion resistant against strong chemicals
- Premium hygienic appearance
- Long service life in demanding environments
Considerations
- Available on demand, longer lead times
- Higher cost per m²
- Some variation in brush finish between batches
Advantages
- Extremely durable and impact resistant
- Highly scratch resistant surface
- Wide range of colours and textures
- Excellent chemical resistance
Considerations
- Available on demand, longer lead times
- Higher cost than standard finishes

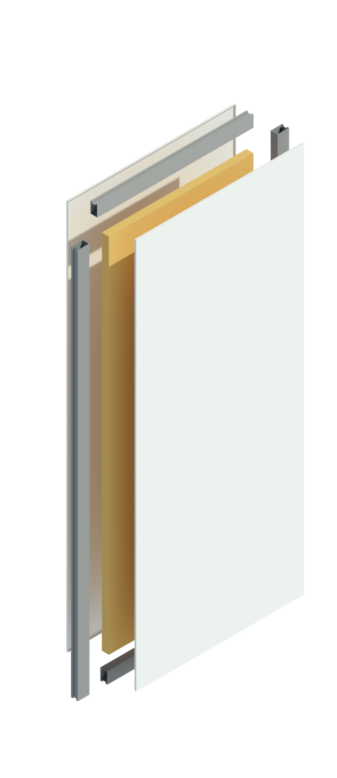

Core
The layer inside that does the work. Choose aluminium honeycomb for rigidity, EPS for thermal insulation, or Rockwool for non-combustible fire performance.
Core at a glance
- Options
- 3 core types
- Honeycomb
- Highest rigidity
- EPS
- Max thermal insulation
- Rockwool
- Non-combustible fire
- Thicknesses
- 50 / 25 / 10 mm
Aluminium HoneycombAluminium Honeycomb Core
Highest strength-to-weight ratio with exceptional flatness and long-term dimensional stability. The non-shedding honeycomb core suits precision cleanrooms and walkable ceilings.
- Precision flatness & rigidity
- Non-shedding, corrosion-resistant
- Walkable-ceiling capable
EPS InsulatedEPS Insulated Core
Expanded polystyrene core delivering maximum thermal insulation with stable R-values over decades. Cost-effective at scale for temperature-critical and cold-process environments.
- Maximum thermal performance
- Stable R-value over decades
- Cost-effective for large facilities

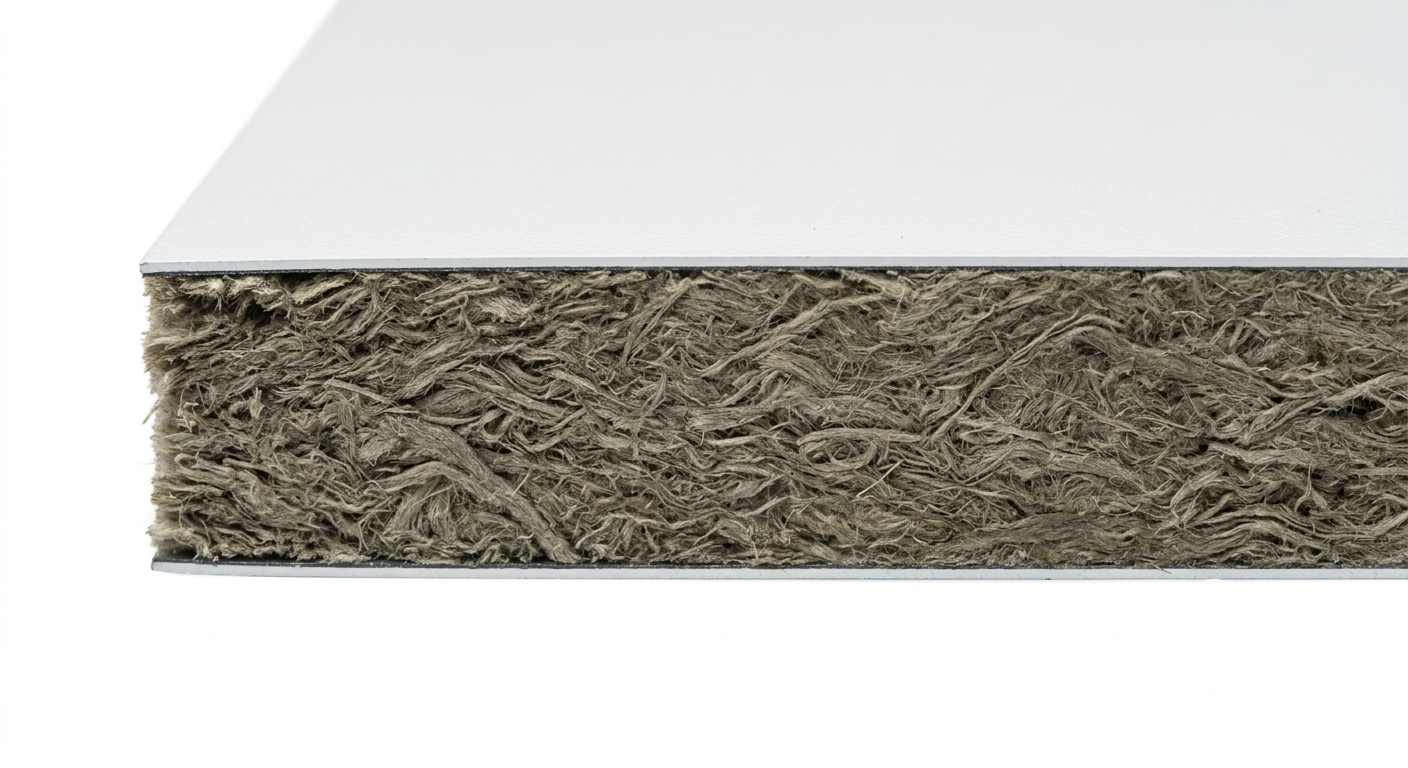

Rockwool Fire-RatedRockwool Fire-Rated Core
Non-combustible mineral wool core delivering certified fire resistance and acoustic insulation. The specified solution wherever fire safety is a code requirement.
- Highest fire resistance rating
- Non-combustible mineral wool
- Excellent acoustic insulation
Tell us your environment and cleaning protocol, and our team will recommend the right sheet finish and core combination for your build.
02 · Sizes
Choose your panel size: 50mm, 25mm or 10mm
Each core is manufactured in three thicknesses. 50mm self-supported sandwich panels for walls and walkable ceilings, 25mm sandwich panels for non-walkable ceilings, and a 10mm liner/cladding panel that overlays existing walls.
walkable ceilings
walkable ceilings
overlay existing walls
Size 01

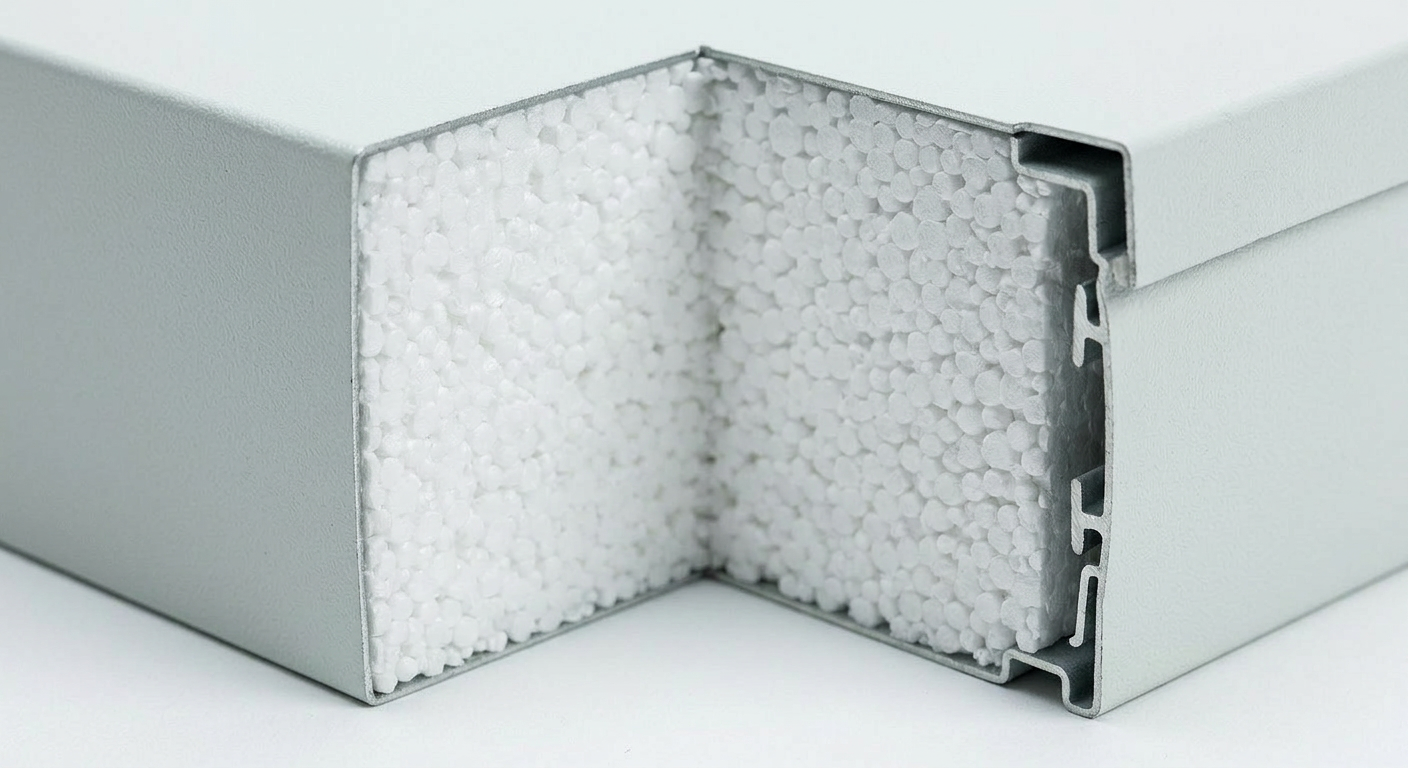

50mm Sandwich Wall & Ceiling Panels
Self-supported 50mm cleanroom sandwich panels for walls and walkable ceilings, with no structural framework required. Available in all three cores: rigid aluminium honeycomb, thermal EPS, and non-combustible Rockwool fire-rated. Anti-corrosive, temperature-controlled 50mm wall systems for demanding controlled environments.
| Specification | Honeycomb50mm Aluminium Honeycomb Most popular | EPS50mm EPS Insulated | Rockwool50mm Rockwool Fire-Rated |
|---|---|---|---|
| Core material | Aluminium Honeycomb | Expanded Polystyrene (EPS) | Rockwool Mineral Wool |
| Panel thickness | 50mm | 50mm | 50mm |
| Max width | 1200mm (47.125") | 1200mm | 1200mm |
| Max height (no joint) | 3000mm | 3000mm | 3000mm |
| Wall system height | Up to 30 ft with joints | Up to 30 ft with joints | Up to 30 ft with joints |
| Skin | 24g uPVC-coated GI steel | 24g coated GI steel | 24g coated GI steel |
| Application | Walls & walkable ceilings | Walls & walkable ceilings | Walls & walkable ceilings |
| Structural | Self-supported | Self-supported | Self-supported |
| Approx. weight | 2.7 lb/ft² | 2.3 lb/ft² | 3.5 lb/ft² |
| Key strength | Highest rigidity & flatness | Maximum thermal insulation | Highest fire resistance |
| Fire rating | ASTM E84 Class A / Non-combustible | Combustible core | Non-combustible |
| Joint | Silicone / cold weld | Silicone / cold weld | Silicone / cold weld |
| Surface finishes | UPVC, Powder Coated, Pre-Painted (standard) · FRP, PVC, Stainless Steel, HPL (on demand) | ||
| Compliance | ISO 14644, GMP, FDA · Fire tested to ASTM E84-17, UL 723, CAN/ULC S102 | ||
Dimensions shown are indicative. Exact panel sizes, weights and tolerances are confirmed on your project drawings.
Size 02

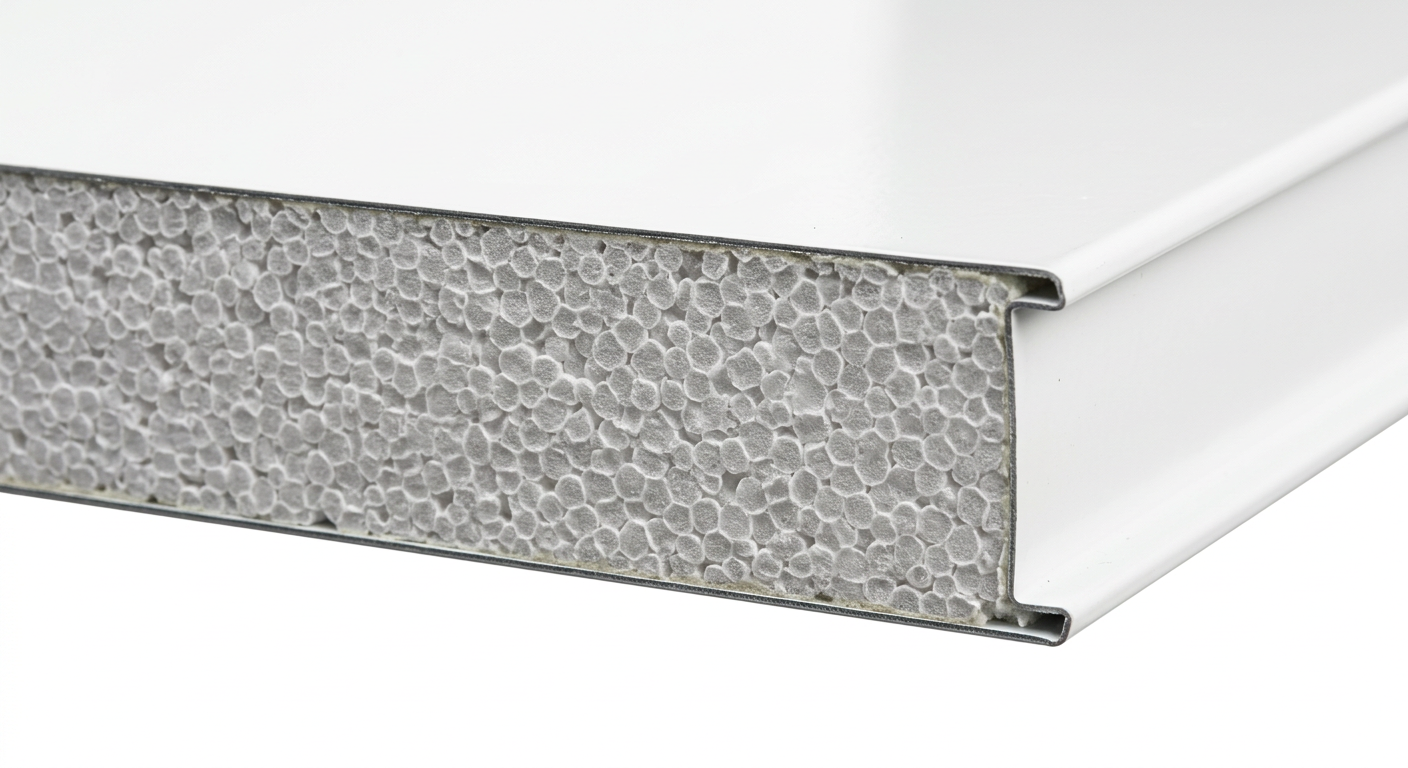

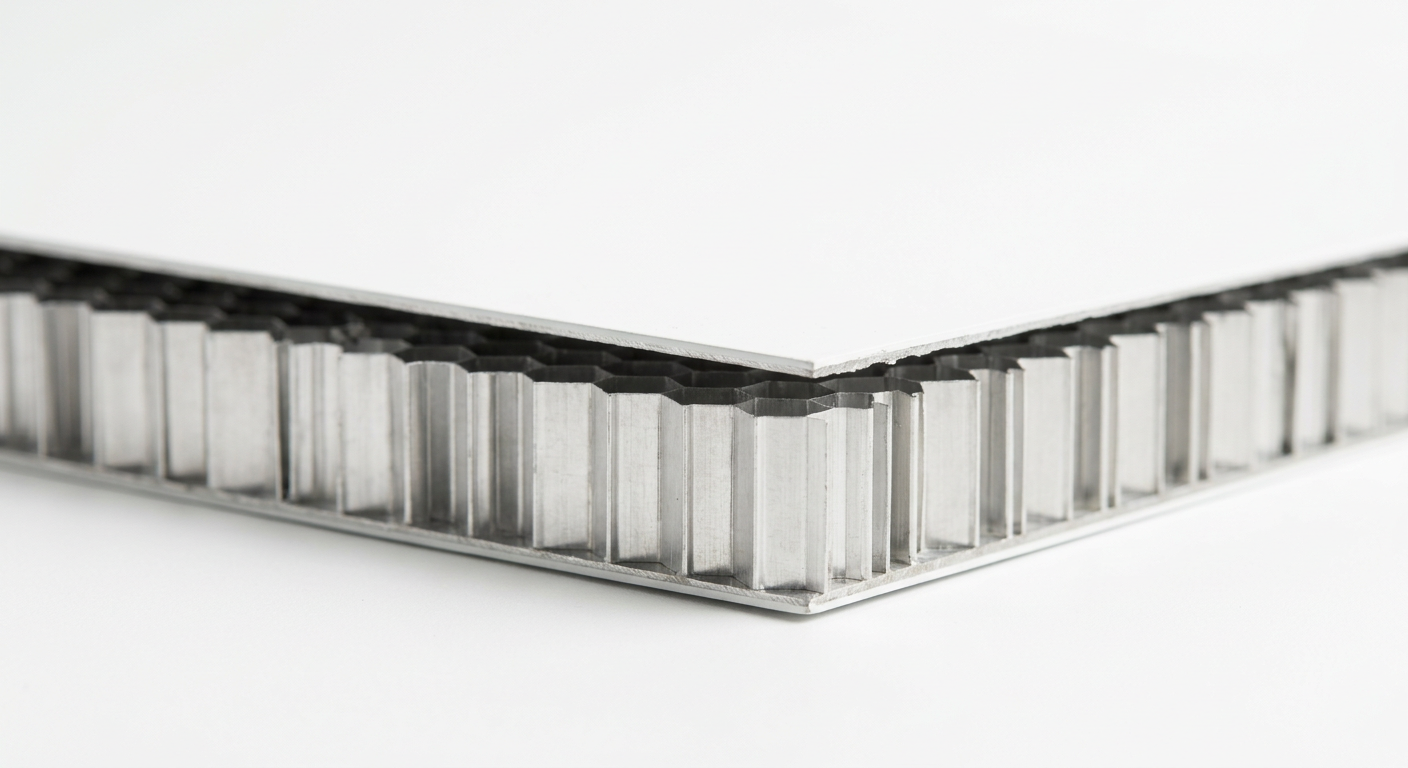

25mm Sandwich Ceiling Panels
Slim 25mm cleanroom ceiling panels for non-walkable overhead installs. Reduced weight and profile while keeping the surface quality of the 50mm range, available in all three cores.
| Specification |  Honeycomb25mm Aluminium Honeycomb |  EPS25mm EPS Insulated |  Rockwool25mm Rockwool Fire-Rated |
|---|---|---|---|
| Core material | Aluminium Honeycomb | Expanded Polystyrene (EPS) | Rockwool Mineral Wool |
| Panel thickness | 25mm | 25mm | 25mm |
| Max width | 1200mm (47.125") | 1200mm | 1200mm |
| Standard size | Up to 1200mm wide | Up to 1200mm wide | Up to 1200mm wide |
| Skin | 24g uPVC-coated GI steel | 24g coated GI steel | 24g coated GI steel |
| Application | Non-walkable ceilings | Non-walkable ceilings | Non-walkable ceilings |
| Structural | Drop-on / supported tile | Drop-on / supported tile | Drop-on / supported tile |
| Approx. weight | 1.4 lb/ft² | 1.2 lb/ft² | 1.8 lb/ft² |
| Key strength | Lightweight flatness overhead | Cost-effective thermal overhead | Fire rating overhead |
| Fire rating | ASTM E84 Class A / Non-combustible | Combustible core | Non-combustible |
| Joint | 3 to 5mm uniform, cold weld | 3 to 5mm uniform | 3 to 5mm uniform |
| Surface finishes | UPVC, Powder Coated, Pre-Painted (standard) · FRP, PVC, Stainless Steel, HPL (on demand) | ||
| Compliance | ISO 14644, GMP, FDA | ||
Dimensions shown are indicative. Exact panel sizes, weights and tolerances are confirmed on your project drawings.
Size 03

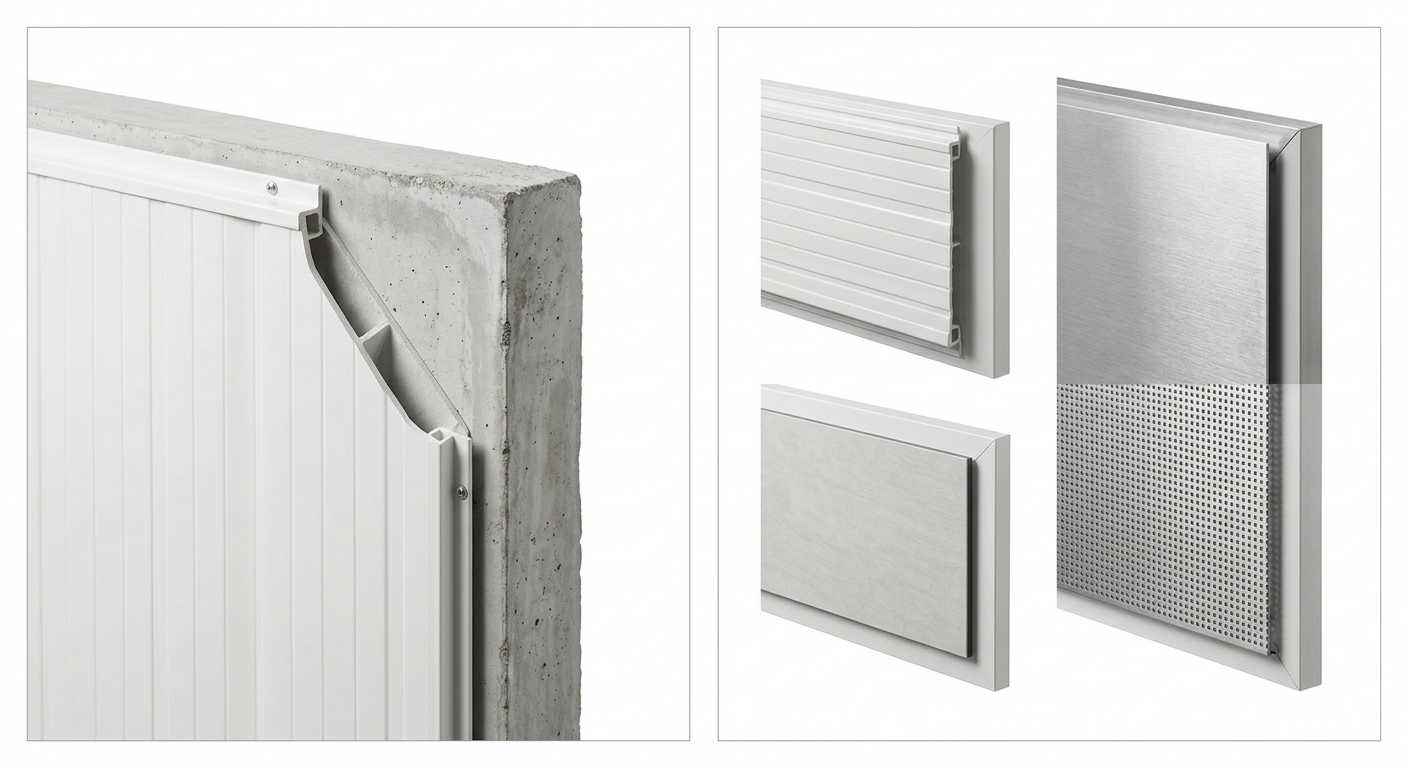

10mm Liner/Cladding Panel
Overlay 10mm cleanroom cladding that fixes directly onto existing walls. The fastest, lowest-cost route to a controlled-environment finish, with no structural work and zero downtime.
10mm Liner/Cladding Panel for Existing Infrastructure
The Moddulx 10mm liner panel clads directly onto existing walls or stands as a self-supported partition, turning standard spaces into clean, controlled environments without demolition. Because it carries no electrical conduits, it is a highly cost-effective alternative to the 2" wall panel.
- Cladding to existing walls, no demolition
- Also works as a self-supported partition
- Ideal for column claddings & bulkheads
- Aluminium honeycomb core, 24g uPVC-coated GI skin
- Simpler install, no conduits to route
Send your dimensions, thickness and core choice for each run, and we'll return full specifications and pricing within one business day.
Tested & Certified
Independently tested to recognised standards
We supply full ASTM, UL and ISO 14644 test documentation on request so your specification and approvals stay on schedule.
03 · FAQ
Cleanroom panel specifications, answered
Common questions about Moddulx cleanroom sandwich panel cores, sizes, finishes, cost and compliance.
